Step by Step SSIS - Conditional Split Transformation TIP #117

In the series of Zero to Hero in SSIS this is our next post. In this post we will see Conditional Split transformation.

I am pretty much sure that by the name you got some impression what it would be.

So, a Conditional Split Transformation is a way by which you can conditionally split an input into multiple output.

Suppose, You are a food supplier and you cook both veg & non veg food. Now according to orders by client you need to move those order requests to particular kitchen to prepare those orders.

Let’s understand it by following step by step execution example.

In this example , I am using AdventureWorks database as a source database connection. We are fetching products along with categories. We need Bikes products in different file and rest other product in different file. You can see products with categories shown below in this image Accessories , bikes are the categories.

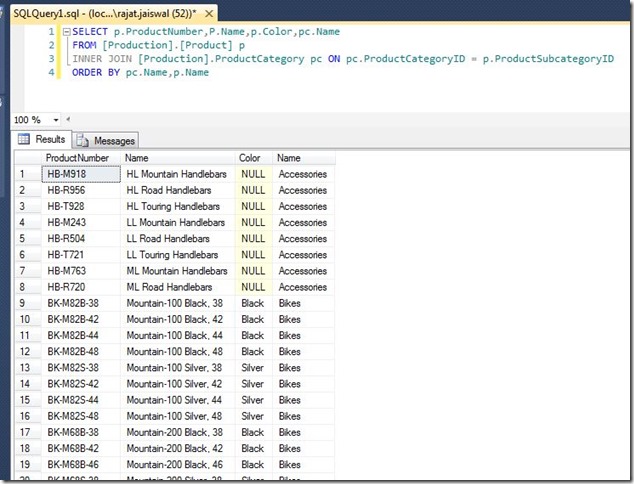

Query1

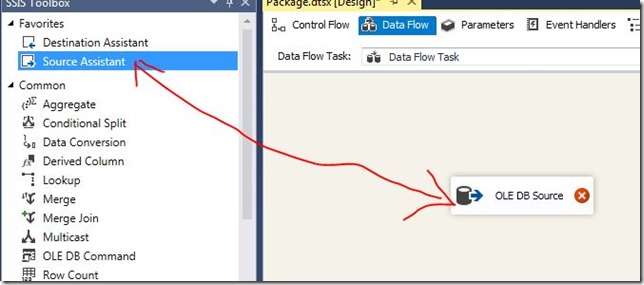

Step 1:- Create a  new package and drag drop data flow task control and double click it. You will get a new screen which data flow task. Now drag drop Source Assistance. from SSIS controls tool bar.

Step1

Now as usual we have to configure the database connection string and set the database to adventureworks.

step2

Step 2:- Once the database is configured right click on control and choose edit property. You will get below screen where you need to specify the query which we shown earlier in figure.

step3

Once you done with above steps you need to configure columns as well so, click on Columns and configure it.

step4

Step 3:- Now drag drop conditional split and connect input arrow to it as shown in figure

step5

Step 4:- Now choose edit option by right clicking the conditional split and configure it.  When you click you will get screen like below. You will find different condition operator. One important point to remember here you need to drag drop column name to condition textbox.  As our aim is to have product with Bikes category in a different file and other categories in different file.So we use following condition as shown in below figure.

step6

Step 5:-Now drag drop a flat file destination and assign the output of the above conditional split to File destination. You will get following screen. As you see we are assigning Bike condition output to this file which means all the products which belongs to bikes categories should be available in this.

Step7

Step 6: Now Configure the flat file destination by choosing the edit option.

step10



Step9

Step 7:- In similar way we have to capture the output which not belongs to Bikes category as shown in below figure

step8

Step 8: In nutshell we will get following screen

step11

We almost done here. Now to check whether this conditional split is working or not. To check this hit F5 or run the package. So, if you see below everything working fine. We got 32 rows in bike category and 73 rows in other categories.

Step12

To cross check result we will see the file output as well

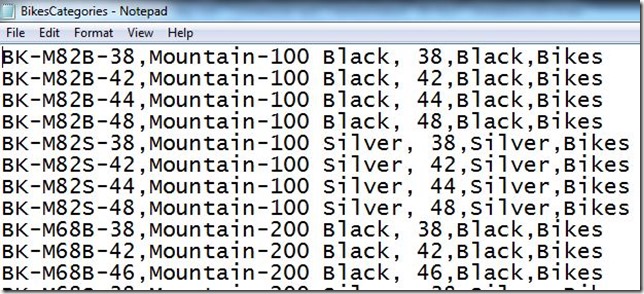

BikeCategories

So , If you  go through all the above steps we have achieved Conditional split example.

I hope this post might help you to understand conditional split.

In next step we will go for next step in SSIS.

Enjoy !!!

RJ!!!

Sunday, September 13, 2015

Step by Step SSIS learning What Data Conversion use in SSIS ? TIP#116

Dear Friends,

In the series of step by step learning of SSIS this is part #6 in which we are going to learn a new control Data Conversion.  I am sure by the name it clear that this control will be use when we require data type conversion of input columns then we need this control. This is exactly same like CONVERT  or CAST  in our programming.

Although, Here it would be important to share SSIS also have data type which are similar to other programming or database’s data types

Like DT_NUMERIC is equivalent to numeric data type, DT_I2 is equivalent to smallint, DT_str is equivalent to VARCHAR and so on.

I am sure you will find this control fairly simple so without wasting much time lets start step by step.

For a change I am using excel data source here.

Suppose, we have an excel of sales order which have columns like sales order, subtotal,Tax amount, and freight.

SaleOrderExcel

Here sales order is varchar, while SubTotal , Tax amount & Freight are numeric with decimal 4 places. We want to convert the numeric field in integer and want result in a flat file. so let’s start.

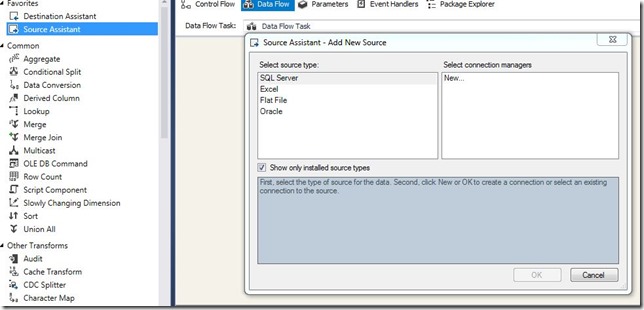

Step1 :- Drag drop a Data flow Task control and double click it. Now add an excel data source from SSIS tool bar as shown in below figure.

ExcelSource

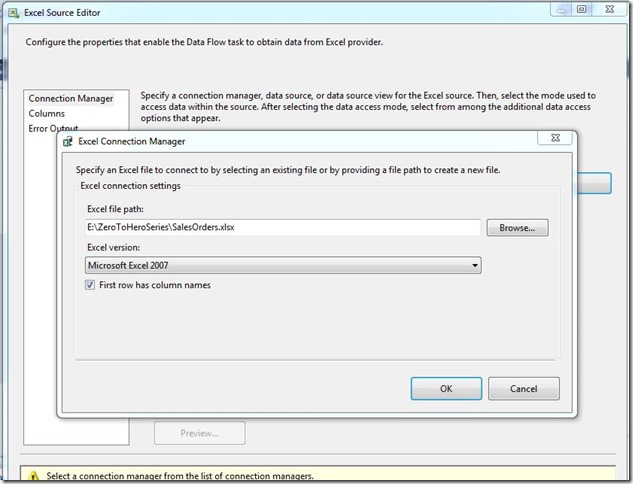

Step 2:- Now next step is to configure this excel source. so to do this just right click and use EDIT option. You will get a screen where you need to provide the file which we want to access.

ExcelSourceStep2

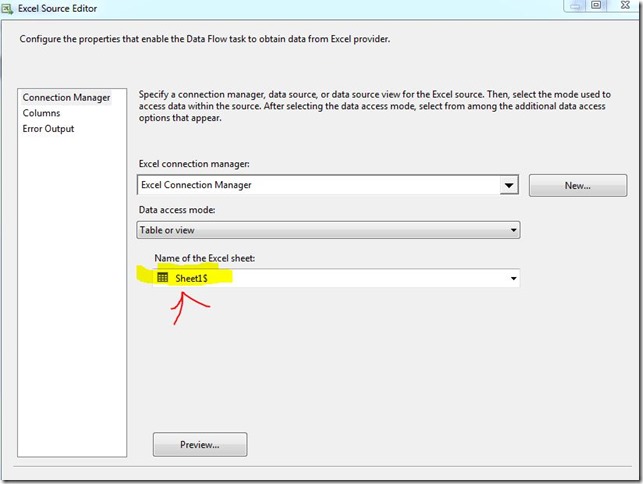

Once the connection with excel is established the Next very important step is to configure sheet as highlighted in below figure. remember you need to configure this sheet because an excel may have number of sheets available so you need to assign proper sheet whose data you want to process.

ExcelSource3

Step 3: Once the sheet is configured you can choose the columns as well which you want to process or want in destination by click column’s option in as shown in below figure

ExcelSourceColumn

Step 4:- Now drag drop the data conversion control from SSIS toolbar

dataConvrsionControl

Step 5:- Now , open context menu and click edit button to configure data conversion. Now remember here we have to change data from numeric to integer (As discussed earlier our aim). so just change the desire data type which is integer (DT_I4) of all the three numeric data type. As shown in below figure. Also , point to remember here if when you do data type conversion you need to careful about Aliasing also. You will see copy of as a prefix on column.

Convesion

Step 6:- Now, we need this output in flat file so adding a file destination control from SSIS toolbox and configuring it by clicking Edit button as shown in below figure.

FlatFile

Step 7:- In next step we have to configure the file location and columns which we require in the flat file. And delete unnecessary columns which are not required.

deleteAccesscolumns

dataConvesionmapping

Step 8 : Once the above step is done, we are good to go to run this package. So,hold your breath for few second and hit F5 Smile .

You will get find below screen. Which shows that all the provided rows are inserted in file.

result

Step 9 : To cross check whether file has integer columns or not lets open it.

CSVREsult

So, if you see above screen we did it successfully. So we achieved our goal in this post and used DATA conversion control successfully.

I hope you feel this post useful.

Thanks for reading this post.

Enjoy !!!

RJ

Saturday, September 12, 2015

How to use SORT control in SSIS ? TIP #115

Dear Friends,

In the series of Learn SSIS step by step this is the 5th post. Now from this post we are going to use each transformation control one by one.

So, lets start with simplest one transformation control which is “Sort”.

By the name it is clear data it will sort the data which is provided to it and give sorted output as a result. Lets understand this by below step by step example. (Here I am not writing step to start visual studio and create a new project, I am pretty much sure you are aware of this now.)

Before going further let me tell you want we are going to do  here. We will have a input result (which will be a text file) and then sort it and save in another file.

Step 1:-I renamed package to SortPackage if you want you can rename your package as well. Now drag drop a Data Flow task as shown below and double click DATA flow task

Step1

Step 2:- When you click it you will get a data flow screen where you can drag drop FLAT file source. You can choose source assistance as well. Now configure this flat file source. Means give the path of the file which you want to have as a input source. I am taking a text file which contain fruits name in different order. as shown in below figure

Step3

Right click flat file source click on EDIT option and follow the screens

Step4

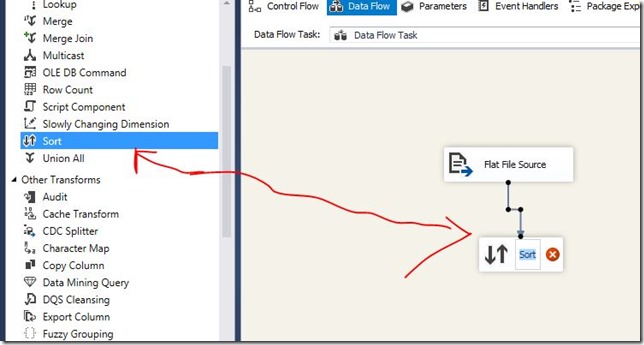

Step 3:- Now once the file is configure. We have to drag drop SORT control from SSIS tool box as shown in below figure.

Step5

I also added the output of flat file source to sort control. As shown in above figure. Now configure it. Click on Sort control and you will get following screen. As show in below screen you can sort the data on any column and in any direction like Ascending or descending.

Right there is only one input column which is name so we are sorting name in Ascending order as shown below.

Step6

Step 4:- Now once this configuration is done we will save the data in new file with new name which will be sortedFruits. Now to achieve this drag drop the destination control. So I took same float file destination as shown in below figure

Step7

Step 5:- Now configure this file destination. Which means where we need to save this file and what are the columns which we required. so In current case there is only one column which is Name (Fruit name) and I am saving this file at same place with sortFruits name. so lets configure it by clicking right click on flat file destination and click on edit button

step8

Step 6:- Once this is configured we need to run this package by pressing F5.When you run hit F5 and everything going right then in execution screen at each step you will find green right check image as shown in below screen

Step1.JPG9

Step 7: Now to cross check we will first see whether that file is created or not. If created then whether we have sorted data or not. So lets open the flat files.

result

So, if you see at provided destination location a file is created and the data inside this file is sorted file.

I hope you like this first transformation control. till then Enjoy!!!

Thanks !!

RJ!!

Saturday, September 5, 2015

How to deploy SSIS Package ? Step by Step SSIS TIP #114

Dear Friends,
In last post we have successfully created our fist basic package. So, Now the next thing is how to deploy this package.

We have created this package for someone else or our client so we need to run this package on his /her machine.

For this we need to know how to deploy. Lets start this step by step

Step 1:- Open the existing solution and right click on the solution you will get following options as shown in figure. You need to click on “Convert to Package Deployment Model”   as highlighted below

convert_To_Package

Step 2:- Once you click it you might get popup for confirmation just click OK.

Package_model_cofirmation

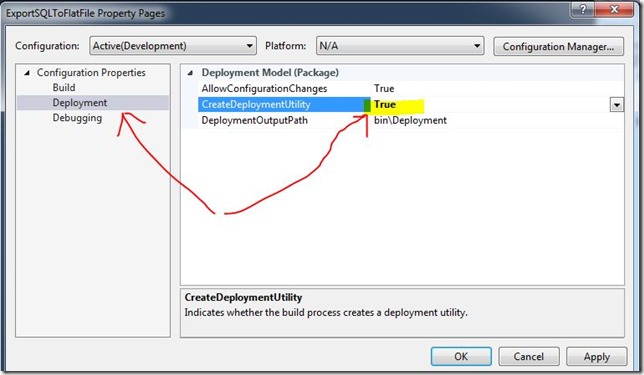

Step 3: Now click on Properties you will get following screen in which you need to select the deployment option. And need to select true value for CreateDeploymentUtility as highlighted below in figure. Once You make this option true  press OK or Apply Button.

Properties

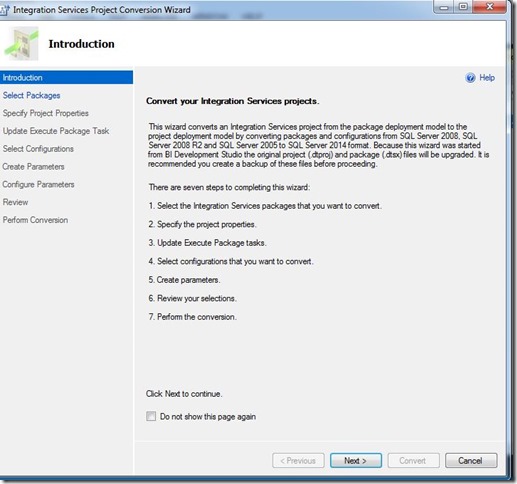

Step 4:- Once you done with this again right click on the solution and again click on Covert to Package deployment model.  Now this time you will get Wizard screen as shown below. Click on Next button

Convert_Wizard_1

Step 5:- You will get below screen which is package selection screen. (Suppose you have multiple packages in a solution so for which package you want to create deployment you need to check / Uncheck according to your need.) Once you selected the Package click on Next button.

Wizard2

Step 6:- When you click next button you will get next option which is specific project properties as shown below in screen. In this we have an important option which is Protection level. It is use to set the level of showing sensitive data in package. for example a package may contain sql server connection string in which we have username and password and username and password are very important and sensitive information. Here ,with protection level we have option to encrypt this sensitive data or make package password protected. This will be an interesting topic which we will discuss separately in near future in separate post. for current time being just leave the default option as is and click on next button.

wizard3

Step 7:- When you click on next button you will get following screen. This is the screen where you can call another package which this deployment. We will discuss it later for current deployment process we don’t want to call any other package.  Just click on next button.

wizard4

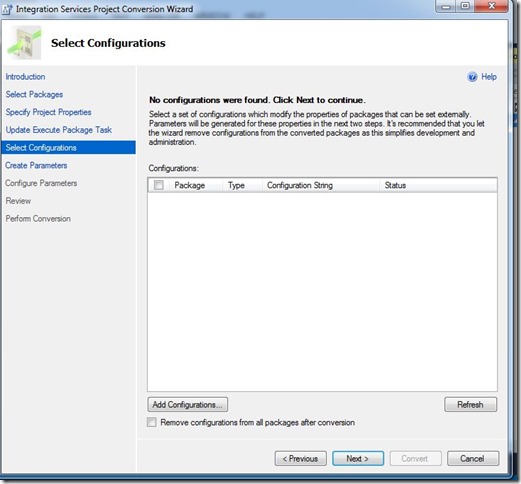

Step 8:- When you click on next button you will get following screen which says about configurations. We can create a configuration file which is just a simple XML file. If you are a .NET developer just assume it web.config file where we can keep connection string or other configurable item.

wizard5

Step 9:- We can create parameters which can be use to pass the values in packages. In current solution we have not configured even parameters so don’t think to much about this currently. We will discuss it separately in coming post.

wizard6

Step 10:- Now directly jump to Perform Conversion and skip review step. and click next you will get following screen of popup. Press OK and then try to rebuild the solution.

wizard10

Step 11:- We did  a build/rebuild to cross check package is correct. Now open the deployment folder in bin folder (You can find the address in step 3’s screen) . When you open the folder you will get two files one is Your package file with DTSX extension and another one which is called manifest file as shown in the figure below. Below ExportSQLToFlatFile is our manifest file  and Package is our actual DTSX package file. (if we have config file then you will find config file as well)

Package_Manifest_Location

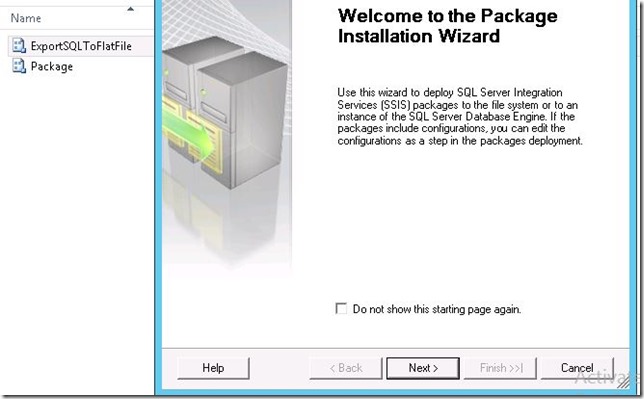

Step 12:- Now, we successfully completed our first part of deployment which is basically creating a package deployment file which is a manifest file. We can copy these files on any server where we need to deploy the package. When you click on Manifest file which is ExportSQLToFlatFile you will get following screen

Actual_Deployment_1

Step 13: Click on Next button when you get above screen you will get following screen which shows 2 options of package deployment

1) File System deployment 2)  SQL Server deployment

Now for current demo we are using file system deployment and clicking next button.

Actual_Deployment_2

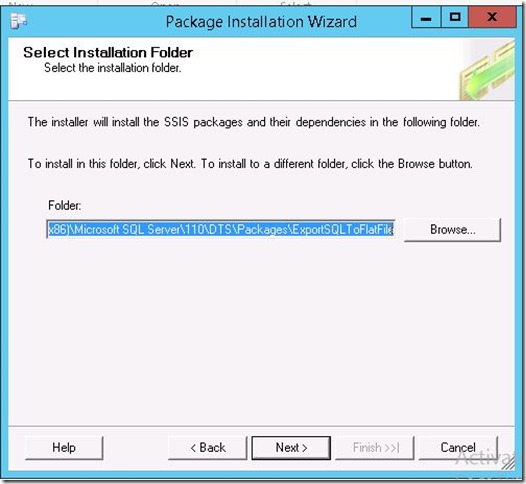

Step 14:- When we click next button we get the screen which ask for folder where package will be deploy by default it is SQL SERVER’s DTS package folder so let it be currently and click Next button

Actual_Deployment_3

Step 15:- After clicking next button , we will get following screen. Which is a confirmation screen for deployment.

Actual_Deployment_4

Step 16:- Now the last step click the finish button and we are good to go.

Actual_Deployment_5

So all the above steps are for creating a deployment for package and then deploy in SQL SERVER. Now , I am sure your next question will be what now ?

So, now we call this Package in SQL SERVER Job and configure job which execute this package time to time.

We, will discuss it more in detail coming post.

I hope you will like this post. please do post your inputs.

Thanks

Raj
